Dimona H36

Dimona H36 at Byron Bay NSW

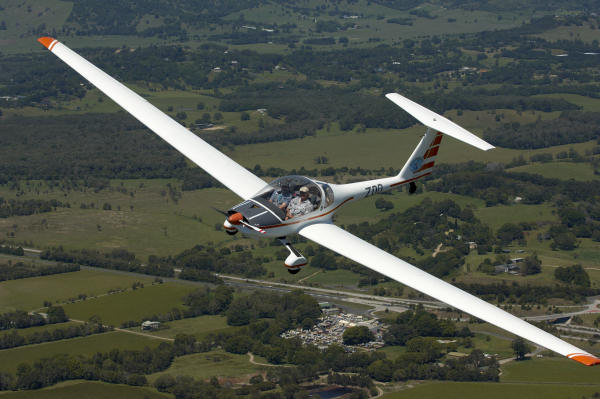

Dimona H36 at Byron Bay NSWFolding wings, Limbach L2000, Hoffman 3 position prop, fixed undercarriage. Canopy slides back in similar fashion to Ximango allowing easy access to the cockpit.

DOG – Dimona Owners’ Group Mailing List

http://waikeriegliding.com/dog/

Dimona H36 Specifications

courtesy John Callahan

VNE  150  Max rough air  113  Manoeuvring
95

Stall  38  Best glide  57  Approach  51-55

Touchdown  40  Max continuos RPM  3000 Thermal
@ 50

Not below 2300 RPM in cruise

Best climb fine prop.  51-55 Best climb coarse prop.  61-65

Propellor fine static max RPM 2700-2900

Propellor coarse static max RPM 2300

Oil temperature 50-120 preferred 80 Oil pressure 1-4 bar @ 2500 RPM

CHT less than 160 in cruise (150-170)  Less than 180 in climb.
Max 250

For engine shutdown CHT less than 125

Spanwijdte: 16 meter

Leeggewicht: 560 kg

Beste glijhoek: 27 bij 105kph

Min. daalsnelheid:  0,9 m/s

LIMBACH MOTORS

–  Oil filter / cooler kits are available from
an American company named “Bugpack” and are available at many VW specialty/performance
shops.

.. Importer is VSI imports www.vsiimports.com.au (offline 1111)
08 82774244

– Rubber products ( baffle seals etc) “Fitches” in Adelaide 08 83465193

and “Grippy” in Rydalmere, Sydney

Fuel Filter Ryco  Z373 which suits a Falcon ED

Fuel pump most likely same as G109

Wheels…. Cleveland /Parker 5.00-5 model 40-78 static rating 1260lbs

Wheel cylinder….. Cleveland 30-9

Dimona Brake Master Cylinder
(word document listed on the documents page in the technical section

HOFFMAN PROPELLOR (Not the same Hoffman who makes
the aircraft).

Prop pitch change lever bearings – 608 2RS (two off). These are larger
than G109.

Prop flange nuts differ to those used on G109.

H36 and G109A accept same prop, but spinner and spinner baseplates
differ, G109 is larger.

More on Hoffman Propellors under technical/motorglider-propellors

Hirschman agent in Australia (tailplane rod end bearings)  is R.R.
Fisher, Unit 7A, 2 Resolution Drive, Caringbah  NSW   2229

Phone:  02 9540 4533

Fax:  02 9540 4079

Harness components are made by Friedrich Gadringer

The Australian agent for E-T-A Circuit breakers (as used in Dimonas)
is:

Rubin Group Pty Ltd

73-77 Whiting Street

AUS-Artarmon

NSW 2064

PO Box 82

Tel:
61 (02) 99065608

Fax:
61 (02) 94392278

email:  csales<at>rubin.com.au

ALTERNATIVE TO FUEL TANK REPLACEMENT
… Mark Morgan’s suggestion (not yet approved by GFA)…. (Feb 02)
Line the the existing tanks with a satin weave cloth and the same resin that Schleicher uses for their fuel tanks in ASW 22, 24, ASH25 and 26.
Schleicher also had a problem with European mogas with the tanks in the ASK 14 and ASK 16 and these tanks had to be replaced with ones made from the current resin.
The details of the lining are..
Bakerlite L20 resin with H 91 hardener
Satin weave cloth EW303   (303 grams per sq metre) from FGI

– Metric fuel line brass fittings are hard to get – try using hydraulic
fittings
AIRCRAFT SPRUCE SUPPLIES…
A U.S. mail order company with an impressive array of aircraft supplies
but unfortunately not many metric items.
Australian agent Lloyd and Dianne Shepherd
sparrowflyte<at>bigpond.com
Catalogues from Lloyd for $AUD22

http://www.aircraft-spruce.com



The following documents are available for download from the documents page in the technical section.

Dimona H36 Sauer

Sauer_flight_manual_performance.doc

Dimona Flight Manual (word document 340k)

Dimona Service Manual (word document 519k)

Drawings (Hauptfahrwerksbügel.pdf 2.2Mb)

Hoffman HO-V-62 Propellor Manual
